NEW PRODUCT LAUNCH

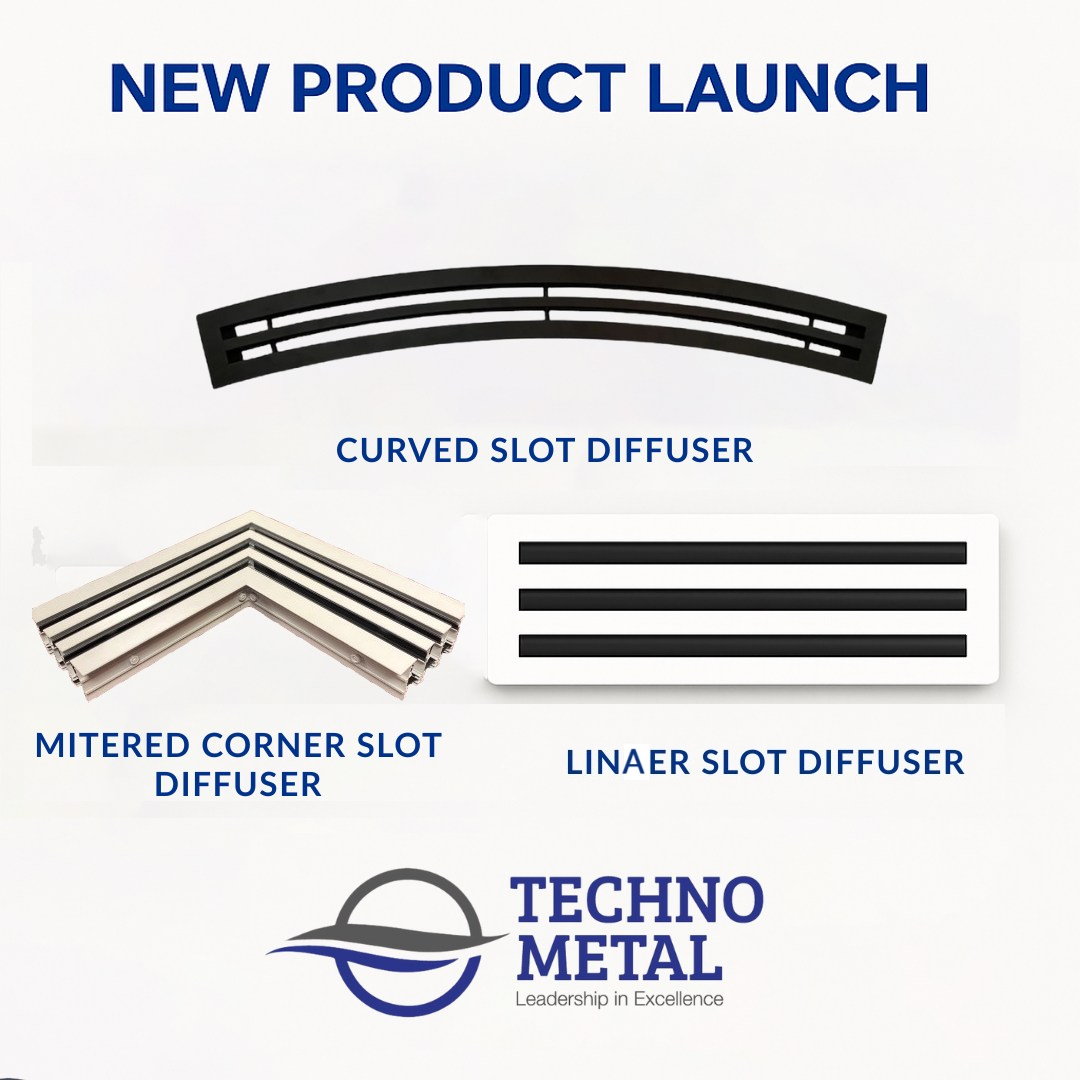

Slot Diffuser Series
Techno Metal proudly introduces its latest range of Slot Diffusers, combining elegance, precision, and performance to deliver optimal airflow solutions for modern HVAC systems.
Construction
-
Frame & Blades: High-quality extruded aluminum profiles (frame width 28 mm).
-
Damper: Hit and Miss damper (GI sheet).
-
Slot Widths: ½”, ¾”, and 1”.
-
Number of Slots: 1 – 8 (1, 2, 3, 4, 5, 6, 7, 8).
-
Length: Up to 3000 mm available in a single piece.
Description
-
Frame and blades are made of high-quality extruded aluminum profiles with a powder-coated finish.
-
180° fully adjustable airflow patterns via two air-deflector blades per slot.
-
Hit and Miss Damper (GI sheet) allows control of airflow rate without affecting air distribution.
-
For maximum rigidity, profiles are fixed at equally spaced intervals using screw rods and cylindrical aluminum shims.
-
Curved segments available for both side-wall and ceiling applications, with a minimum radius of 1000 mm.
-
Vertical inside & outside mitered corners at 90° (standard) and non-standard angles available upon request.
-
Horizontal 90° mitered corners and non-standard angles (> 90°) also available.
-
Powder-coated finishes are available per RAL color codes as standard, with flexible finish options upon request.
